CompAir air compressors

CompAir mobile compressors.

  • A wide variety of users rely on CompAir C Series compressors when there is a demand for portable compressed air. Pressures range, depending on the model, from 7 to 24 Bar (101 to 350 psi). CompAir's experience in the design and manufacture of high quality and efficient portable compressors spans 200 years. The whole range consists of over 30 models, there is a model to suit any application, from the smallest single axle model, powering a single pneumatic tool, through to the innovative Turboscrew range of machines.
  • All models have easy access for operation and routine maintenance as standard across the range with well located control panels and simple lift off canopies or large access doors. Across the C Series a wide range of options exist to tailor the compressor to your exact requirements. These include adjustable tow-bars, built in A/C Generators on certain models, additional filtration, built in aftercoolers, tool lubricators, road lights, pneumatic hose reels and also customers own paint colour and signwriting.

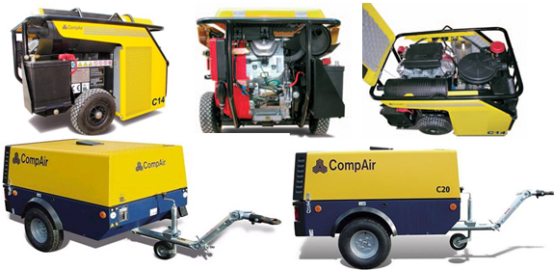

Portable Compressors C Series C14 - C30 range with 1.4 to 3 m3/min output
Model

C14 (DLT0101)

C20 (DLT0206)

C20GS (DLT0206)

C25 (DLT0206)

C30 (DLT0206)

Output free air delivery at rated pressure (m3/min)

1.4

2

2

2.5

3

Max or rated operating pressure  (Bar g)

7 to 8

7 to 8

7 to 8

7 to 8

7 to 8

Minimum operating pressure  (Bar g)

5

5

5

5

5

Engine power  (kW)

13.2

16.7

22.7

19.4

22.7

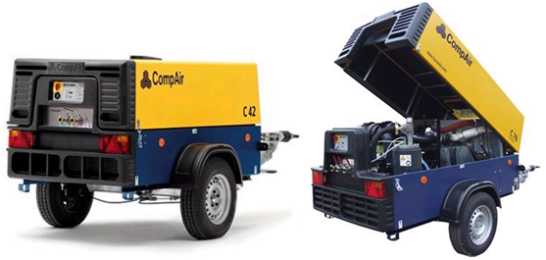

Portable Compressors C Series C35-10 - C76 range with 3.5 to 7.6 m3/min output
Model

C35-10 (DLT0407)

C38 (DLT0407)

C42  (DLT0407)

C50 (DLT0407)

C55-14 (DLT0704)

Output free air delivery at rated pressure (m3/min)

3.5

3.8

4.2

5

5.5

Max or rated operating pressure  (Bar g)

10 to 11

7 to 8

7 to 8

7 to 8

14

Minimum operating pressure  (Bar g)

5

5

5

5

5

Engine power  (kW)

35.5

35.5

35.5

35.5

63

Model

C60-12 (DLT0704)

C62 (DLT0407)

C65-10 (DLT0704)

C65HS (DLT0704)

C76  (DLT0704)

Output free air delivery at rated pressure (m3/min)

6

6.2

6.5

6.5

7.6

Max or rated operating pressure  (Bar g)

12

7 to 8

10

7

7 to 8

Minimum operating pressure  (Bar g)

5

5

5

5

5

Engine power  (kW)

63

44.7

63

63

63

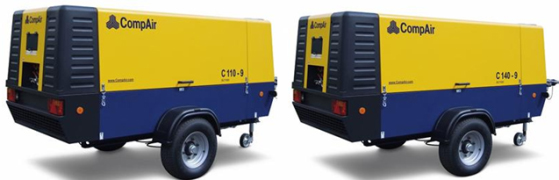

Portable Compressors C Series C85-14 - C140-9 range with 8.5 to 13.5 m3/min output
Model

C110-9 (DLT1303)

C125 (DLT1303)

C85-14 (DLT1303)

C95-12 (DLT1303)

C105-14 (DLT1303)

C115-12 (DLT1303)

C140-9 (DLT1303)

Output free air delivery at rated pressure (m3/min)

11.3

12.5

8.5

9.5

10.5

11.5

13.3

Max or rated operating pressure  (Bar g)

8.6 to 9

7 to 8

14

12

14

12

8.6 to 9

Minimum operating pressure  (Bar g)

5

5

5

5

5

5

5

Engine power  (kW)

97

97

97

97

119

119

119


 Portable Compressors C Series C85-14 - C140-9 range with 8.5 to 13.5 m3/min output


 BROŠŪRA (ENG)

Model

C200TS-14 (DLT2701)

C210TS-12 (DLT2701)

C220TS-10 (DLT2701)

C230TS-9 (DLT2701)

C200TS-24 (DLT2701 HP)

Output free air delivery at rated pressure (m3/min))

20

21

22

23

20

Max or rated operating pressure  (Bar g)

14

12

10

8.6 to 9

24 to 26.18

Minimum operating pressure  (Bar g)

5

5

5

5

13

Engine power  (kW)

180

180

180

180

228

Model

C210TS-21 (DLT2701 HP)

C230TS-17 (DLT2701 HP)

C240TS-14 (DLT2701)

C250TS-12 (DLT2701)

C270TS-9 (DLT2701)

Output free air delivery at rated pressure (m3/min)

21

23

24

25

27

Max or rated operating pressure  (Bar g)

21 to 23.8

17 to 19.8

14

12

9

Minimum operating pressure  (Bar g)

13

13

5

5

5

Engine power  (kW)

228

228

228

228

228
