Dal-bo grass rollers

Dal-bo  offers high performance grass rollers adjustable to the agriculture tasks:

  • DAL-BO Greenline 300
  • DAL-BO Maxi Roll Greenline



DAL-BO Greenline 300 is a 1-section cylindrical (710 x 10 mm) roller which is ideal for grassland management such as grassland, sports centres, golf courses, etc., as well as for their establishing anew. To increase the weight of the implement, the steel roller can be filled with water. Greenline 300 is equipped with a mechanically adjustable steel board. There is approximately 950 kg weight per 1 m of the working-width. Shaft mechanical jack. Road lights.

Optional equipment:
·         hydraulically adjustable 2-row tine (12 mm) harrow with support wheels;
·         mole hill board;
·         it can be equipped with a small seed planter Rotoseeder World;
·         larger (400 / 60 – 14) tyres instead of the standard ones;
·         it can be equipped with 60 cm Cambridge rings (instead of the roller rings).

Model Working width (m) Weight/ with water (kg)
Greenline 300 X 70 2.8 1260/ 2240
Greenline 300 X 60 Cambridge 2.8 2050

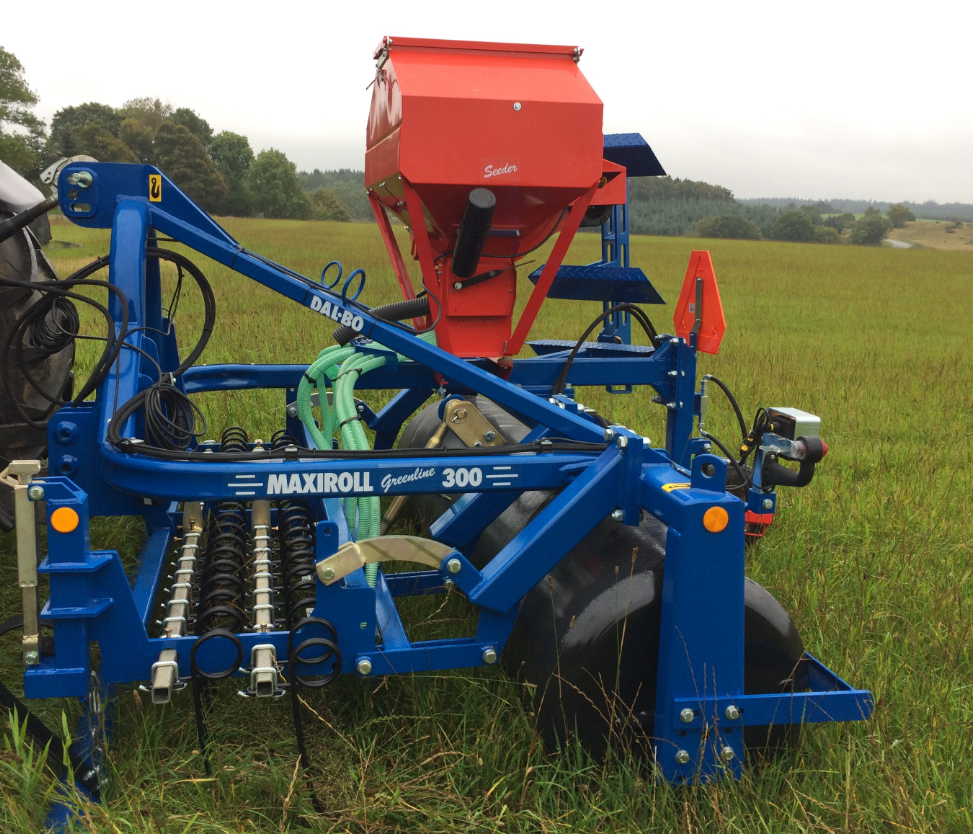

DAL-BO Maxi Roll Greenline
Greenline is a modern solution for grassland management, as well as for establishing new ones and improving the existing ones. Mutual overlap of the working width ensures consistently high performance quality both when making sharp turns and on uneven ground. Hydraulically folded 3-section design with water filled rollers (710 x 10 mm). A specific 'DUOFLEX system ensures independent operation of the sections. Transport position is ensured by an automatic hydraulic lock. Adjustable steel board. Approximately 900 kg weight on 1 m of the working-width. Mechanic jack. Road lights. It can be equipped with the pneumatic small seed planters (P-Box Speed-Seeder and Pneumaticbox-Seeder).

Optional equipment:
·         hydraulically adjustable 1-row tine (12 mm) harrow with support wheels (6.3 m);

·         hydraulically adjustable 2-row tine (12 mm) harrow with support wheels (8.3 m);
·         mole hill board (combined with a harrow);
·         hydraulically operated crackerboard with spring tines;
·         pneumatic brake system.


Model Working width (m) Weight/ with water(kg)
Greenline 630 X 710 6,3 3250/ 5580
Greenline 830 X 710 8,3 4200/ 7540
