Moipu heads

Moisio Forest Oy offers a full range of Moipu heads for harvesters:

  • 240 EFI Knives Cut
  • 250 F1 Knives Cut
  • 300 F1 Knives Cut
  • 300 F2 Saw Cut
  • 300 F3 Dual Cut
  • 500 F2 Saw Cut
  • 500 F3 Dual Cut

240 EFI Knives Cut - small and agile

  • Easy to install: only pressure and tank hoses, no electricity (EFI = electric free installation)
  • Small and nimble head
  • Fast and effective scissors cut with triangle knives
  • Accumulation capacity (about 3 – 6 trees, depending tree size)
  • Good loading abilities: Large opening and low tilt height


250 F1 Knives Cut - lightweight and versatile

  • Small and nimble head
  • Excellent loading -> Also works well in combi use
  • Great delimbing opening (102cm) to facilitate the loading of the collection, as well as twigs
  • Big feeding power (17kN) and speed (5m/s) rate for size class
  • Short grapple body is good when feeding complex trees
  • Accumulation capacity can be increased with extra accumulation kit



300 F1 Knives Cut -  when productivity counts

  • Powerful and versatile head
  • Excellent loading -> very good for a combi machines
  • Delimbing large opening (130 cm) to facilitate the loading of the trees
  • Big feeding power (17kN) and speed (5m/s) rate for size class
  • Wide feed rollers and strong delimbing knives helps multi tree handling and feeding
  • Accumulation capacity can be increased with extra accumulation kit
  • Powerful knive cut is excellent when cutting energy trees and bushes
  • May be updated afterwards to saw or DualCut (saw+knife)



300 F2 Saw Cut - when productivy counts

  • Powerful and versatile head
  • Excellent loading -> very good for a combi machines
  • Delimbing large opening (130 cm) to facilitate the loading of the trees
  • Big feeding power (17kN) and speed (5m/s) rate for size class
  • Wide feed rollers and strong delimbing knives helps multi tree handling and feeding
  • Accumulation capacity can be increased with extra accumulation kit
  • Hard wood cuts easily with chain saw
  • DualCut -knife is an option



300 F3 Dual Cut - when productivity counts

  • Powerful and versatile head
  • Excellent loading -> very good for a combi machines
  • Delimbing large opening (130 cm) to facilitate the loading of the trees
  • Big feeding power (17kN) and speed (5m/s) rate for size class
  • Wide feed rollers and strong delimbing knives helps multi tree handling and feeding
  • Accumulation capacity can be increased with extra accumulation kit
  • Hard wood cuts easily with chain saw
  • Knife cut saves chain saw when cutting small energy trees or bushes
  • Accumulation capacity can be improved with extra accumulation kit (option, on the picture

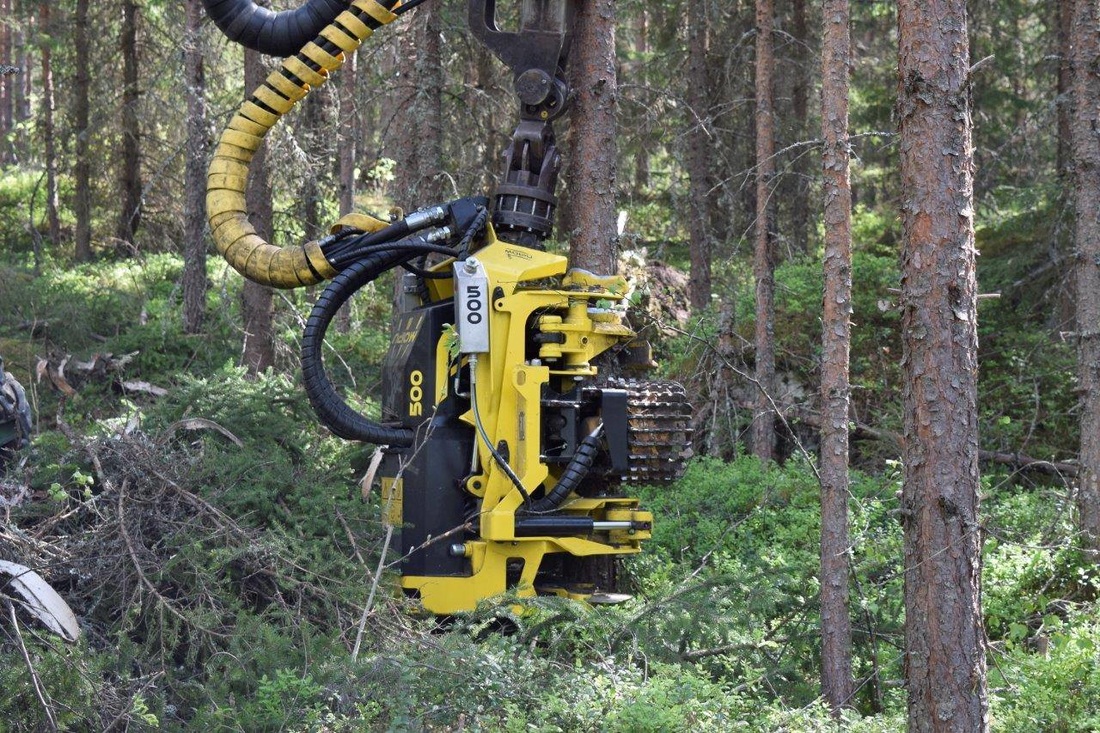

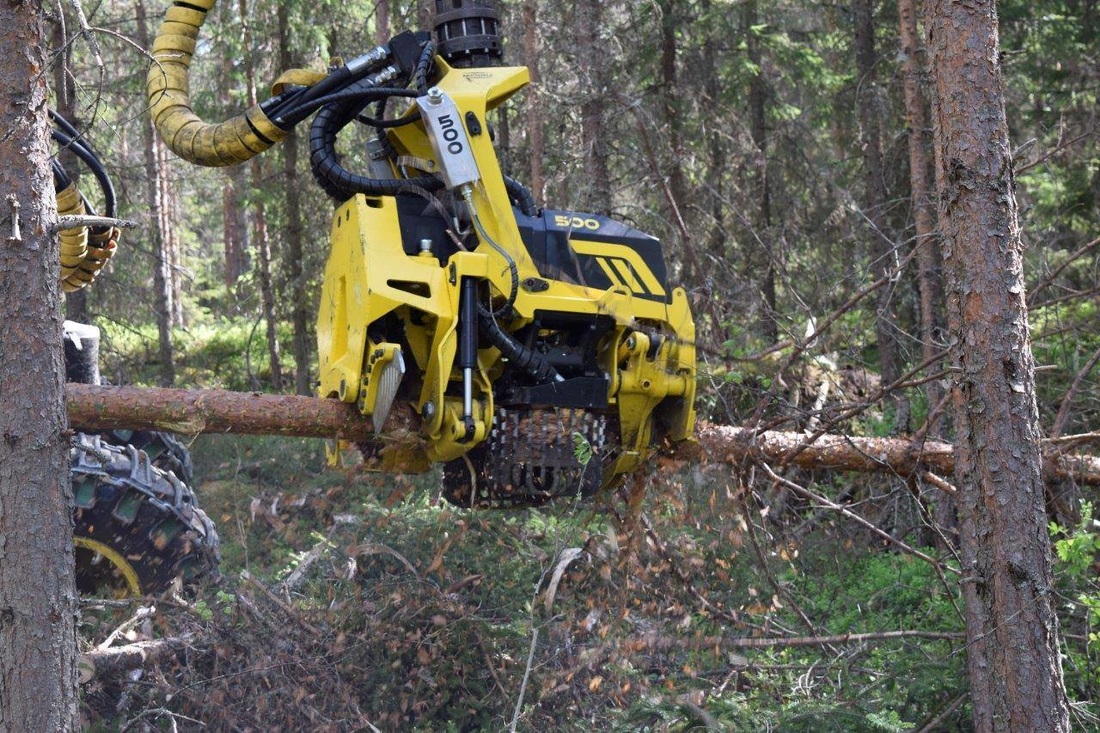

500 F2 Saw Cut -  for bigger forest also

  • Powerful and versatile head
  • Excellent loading -> very good for a combi machines
  • Delimbing large opening (94 cm) to facilitate the loading of the trees
  • Big feeding power (23kN) and speed (5m/s) rate for size class
  • Wide feed rollers and strong delimbing knives helps multi tree handling and feeding
  • Accumulation capacity can be increased with extra accumulation kit
  • Hard wood cuts easily with chain saw
  • DualCut -knife is an option



500 F3 Dual Cut - for bigger forest also

  • Powerful and versatile head
  • Delimbing large opening (94 cm) to facilitate the loading of the trees
  • Big feeding power (23kN) and speed (5m/s) rate for size class
  • Wide feed rollers and strong delimbing knives helps multi tree handling and feeding
  • Accumulation capacity can be increased with extra accumulation kit
  • Hard wood cuts easily with chain saw
  • Knife cut saves chain saw when cutting small energy trees or bushes
