Trailed sprayers

Farmers face challenges every day which require improving performance and reducing operating costs. To help them cope with these challenges and requirements HARDI has developed high performance trailed sprayers:

  • Commander - the intelligent sprayer (tank 3300 - 7000l, booms 18-42m)
  • Navigator - the obvious choice (tank 3000l - 6000l, booms 18-39m)
  • Ranger - class leading features (tank 2500l, booms 12-24m)

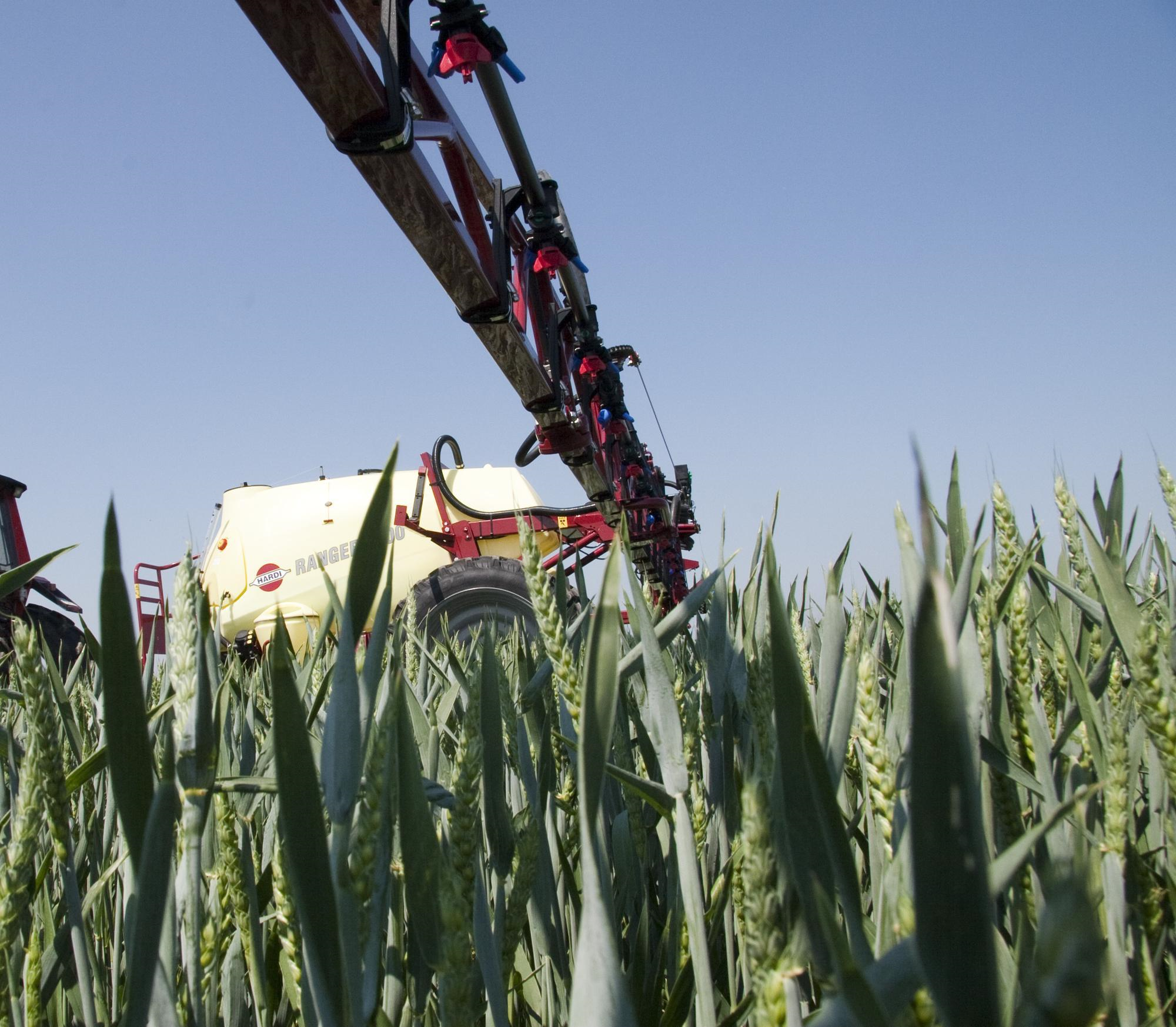

RANGER - leading in features

Being the smallest in the large HARDI trailer range, the kinship does not fail. The RANGER is designed to meet the request for a simple and reliable trailer. This goal is reached and proven by successful worldwide sales since the introduction in 2006. At the same time RANGER is leading in its class offering a big range of different features.

Booms based on toughly different concepts ensure the right boom for the specific need. Intelligent tank and frame design ensure stability and strength. Unique components guarantee best performance and ultimate durability.

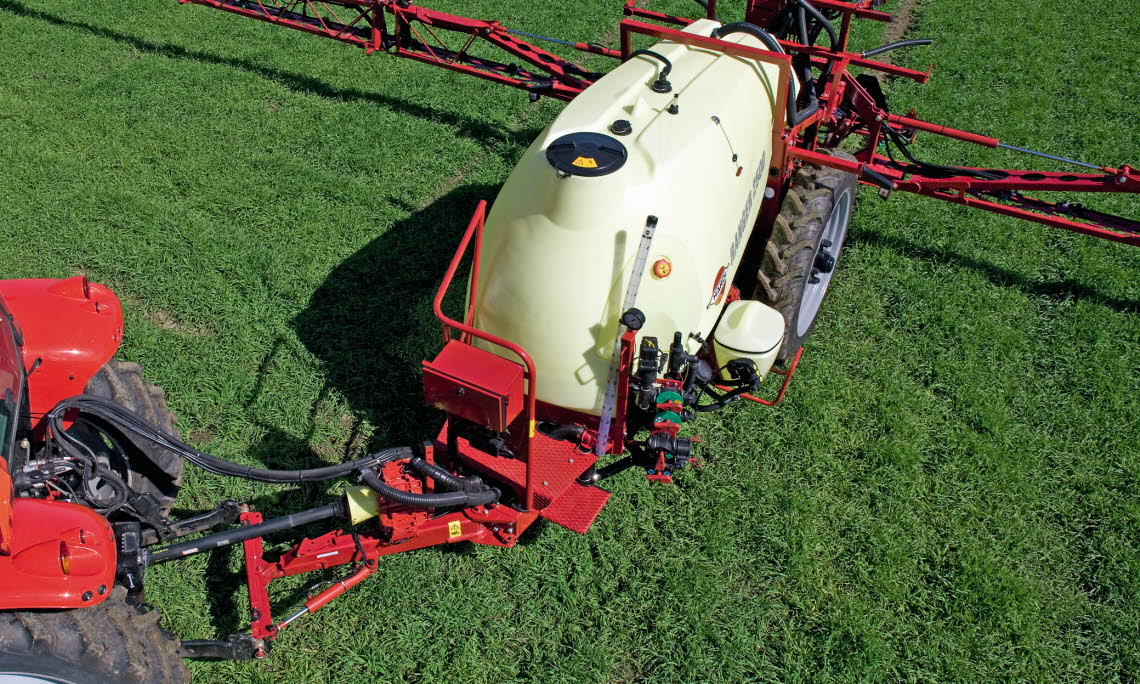

SelfSteer

SelfSteer is coupled on the tractor’s 3-point hitch and gives a better tracking on headland. SelfSteer is a simple mechanical steering system with low maintenance and no operation or setting required by the operator during the spray job. SelfSteer can be equipped with slope correction. Slope correction is manually operated directly from the tractor’s hydraulics and helps the SelfSteer to stay in the tramline also in hilly conditions.

HC 5500 Controller

The HC 5500 is a powerful computer making the spray features easier and safer to use and easily supplies more information when needed. It is the obvious choice where features like IntelliTrack and advanced farming tools are desired. The operator is instantly informed of the operation status and warned if vital parameters like pressure, speed, etc. are incorrect.

It is advanced farming, ready with up to 98 register and connection possibilities to a site-specific application map or a remote sensor. Various optional extras like SprayRover, TankGauge or 12-V printer are available.

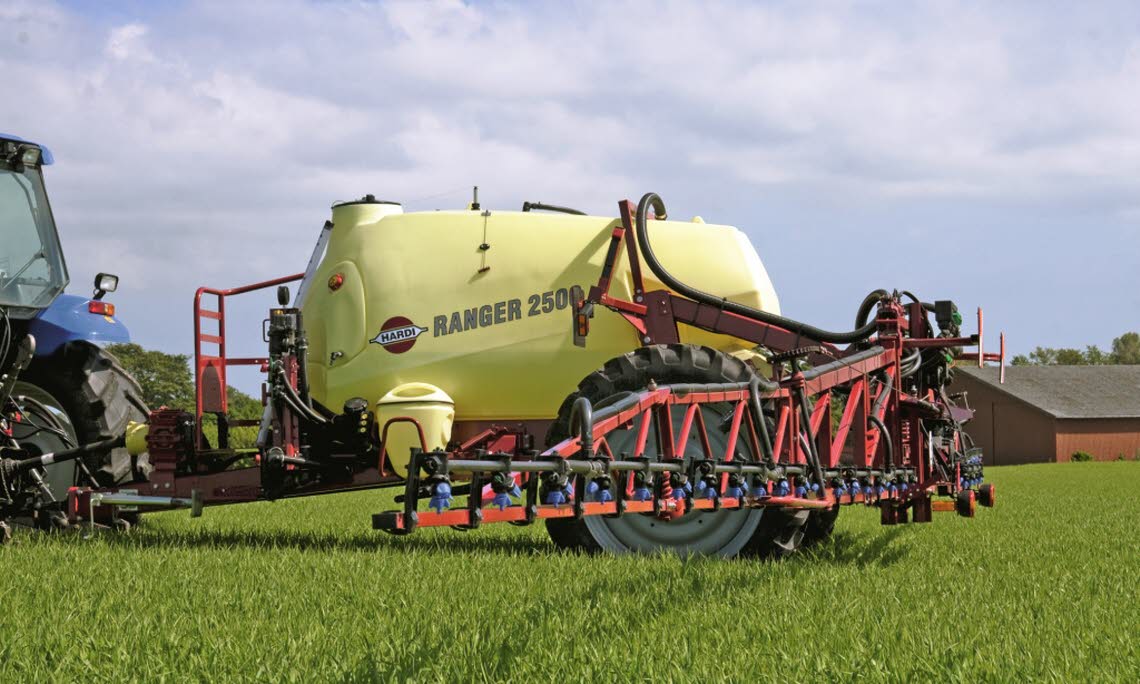

EAGLE 18, 20 and 21 m booms

EAGLE booms feature a rugged two-dimensional structure and a coil spring self-stabilizing trapeze boom suspension. This combination provides for many years of trouble free use even in the toughest field conditions. A non-directional spring loaded break-away system protects the boom from damage. EAGLE boom is the solution if robustness and high driving speed are required.

Standard:

  • ParaLift for height control
  • Symmetric fold of boom wings

Optional:

  • Single-side folding
  • Individual boom tilt ÌÌ Boom slant

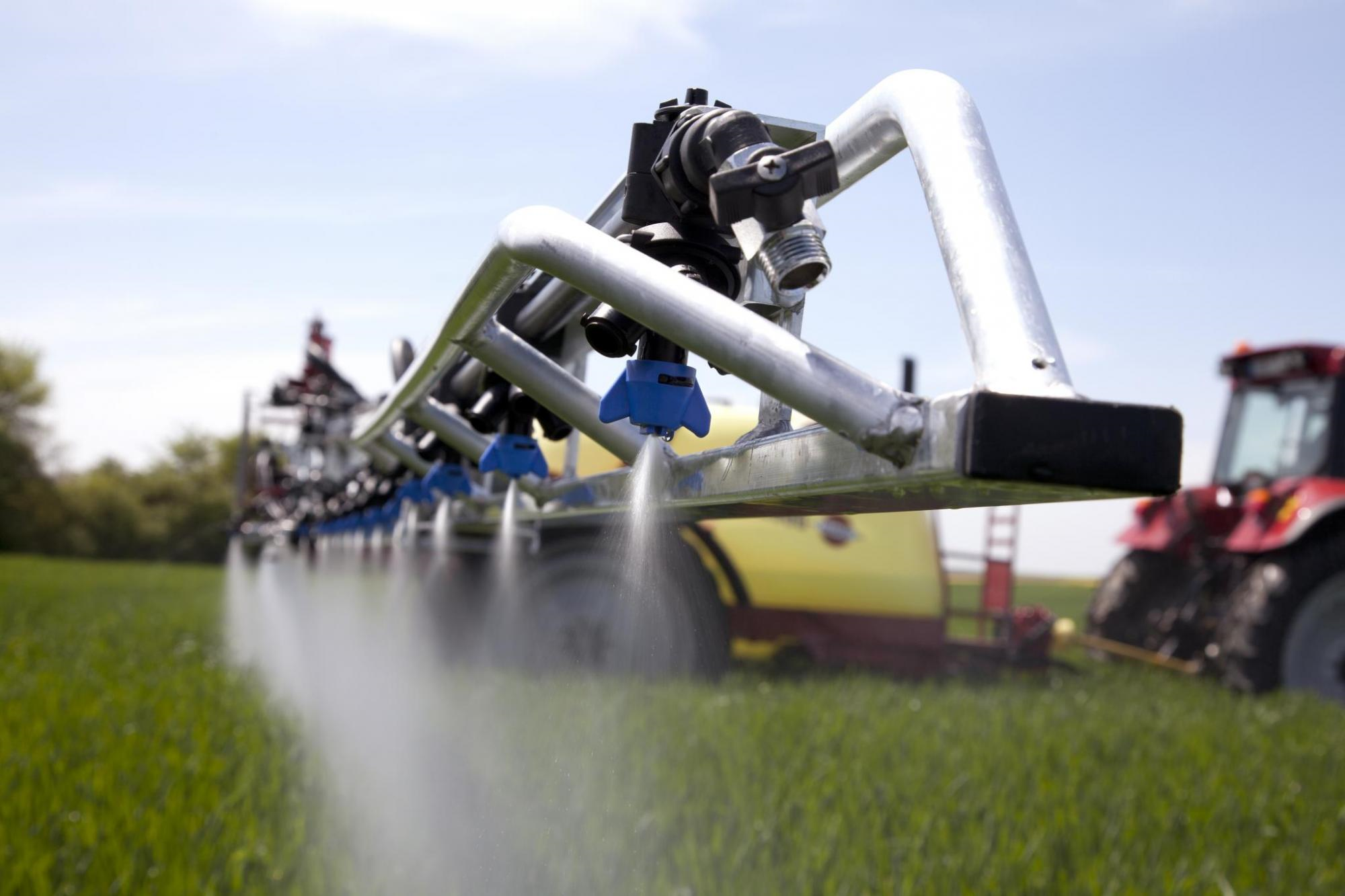

PRO VH from 12-18 m and
PRO VP booms 20, 21 and 24 m

The booms are constructed in steel with a lattice design optimizing weight with the greatest possible strength. The excellent performance of the PRO boom ensures precision spray applications even in the most challenging field conditions. All functions on the PRO booms can be electro-hydraulically operated, from a compact, conveniently located control panel. The primary controls, those which are most used in the field, are grouped together for ease of use, such as boom height, independent tilting of either boom section and complete boom slanting. Electro-hydraulic operation is option on VH and standard on VP.

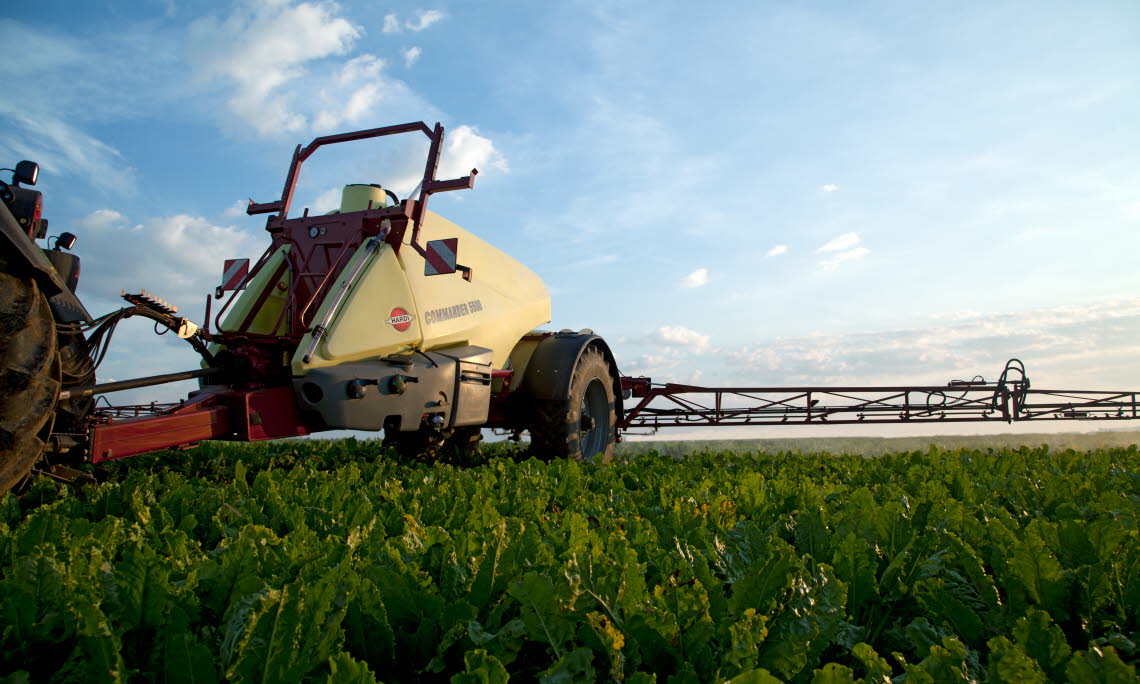

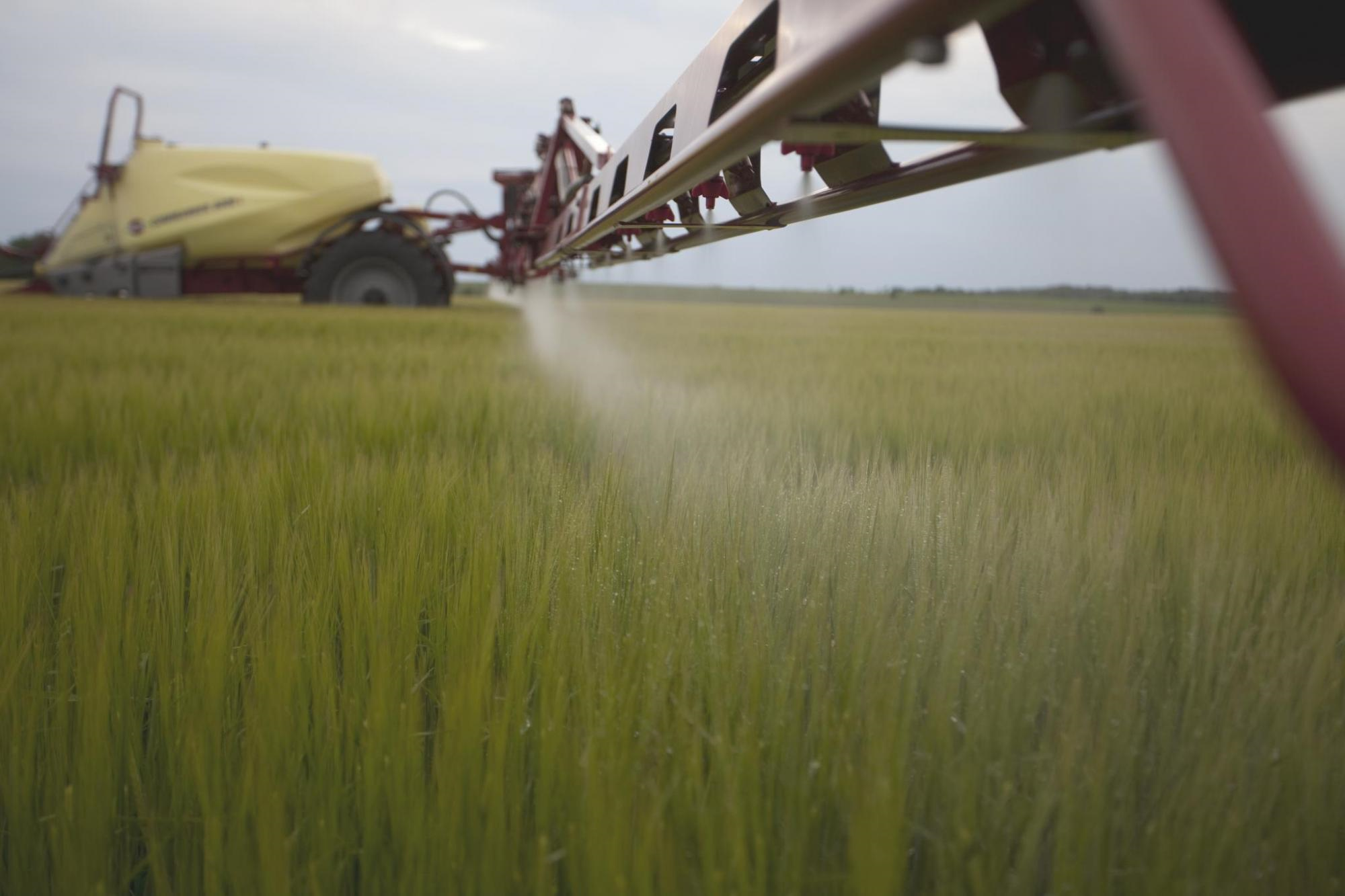

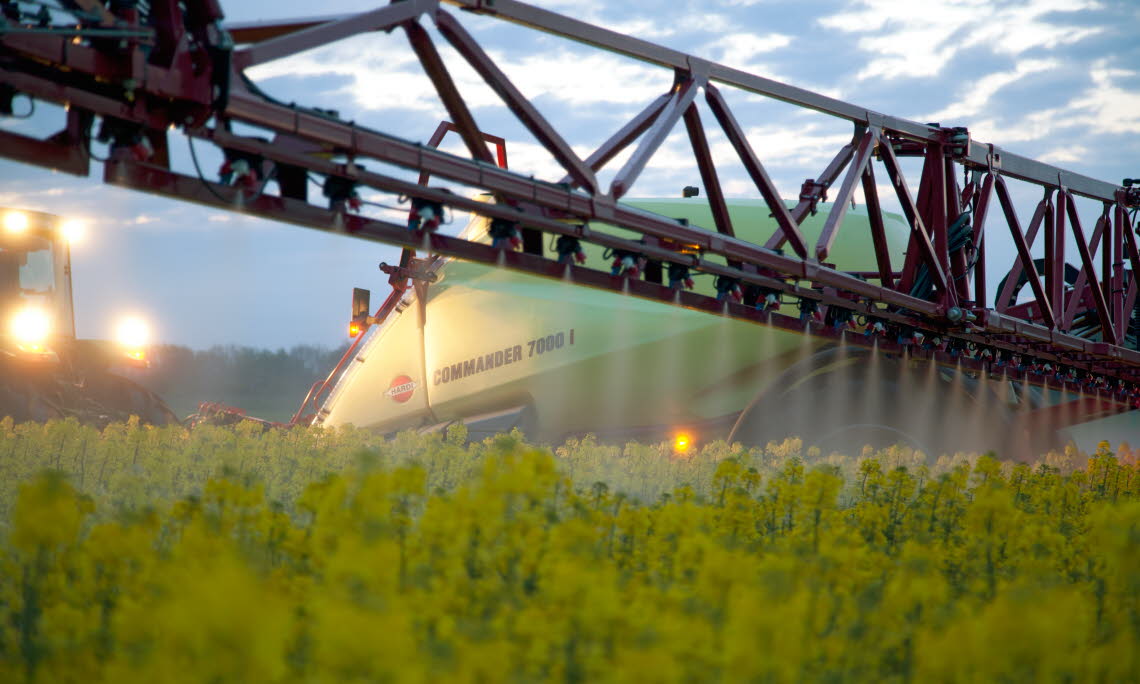

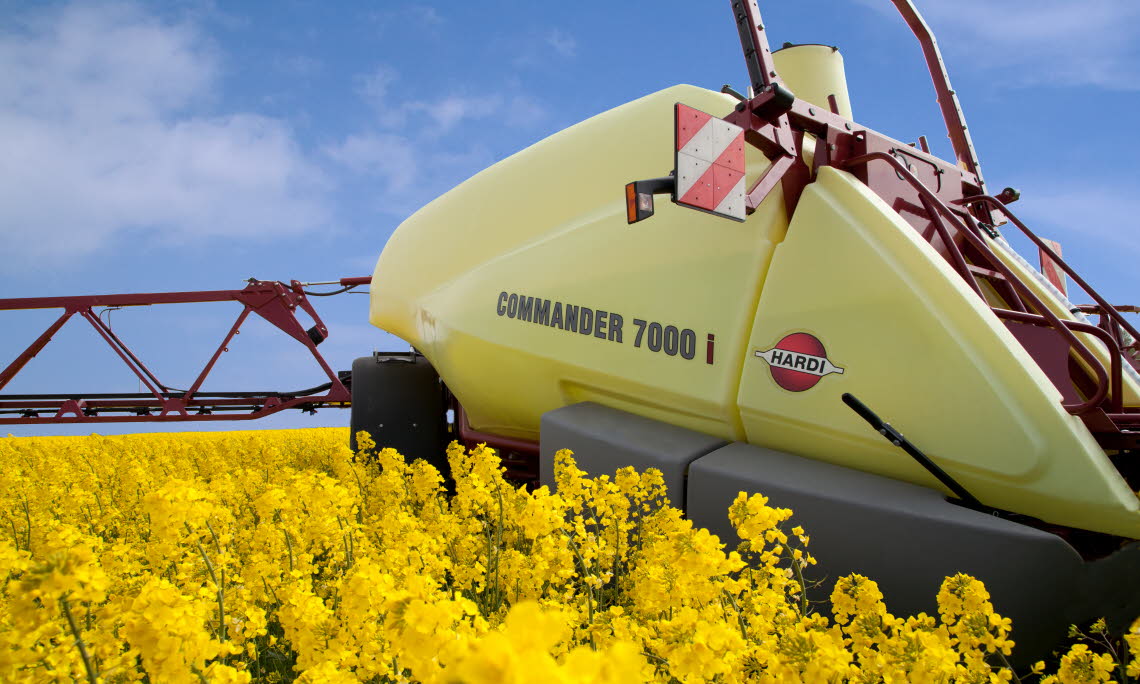

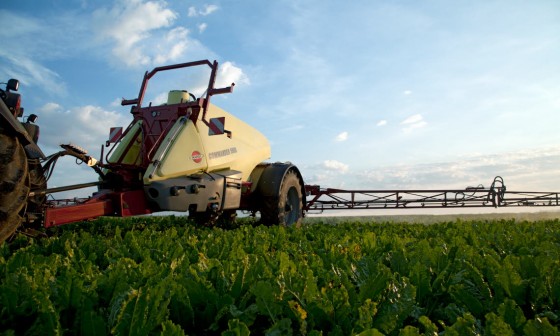

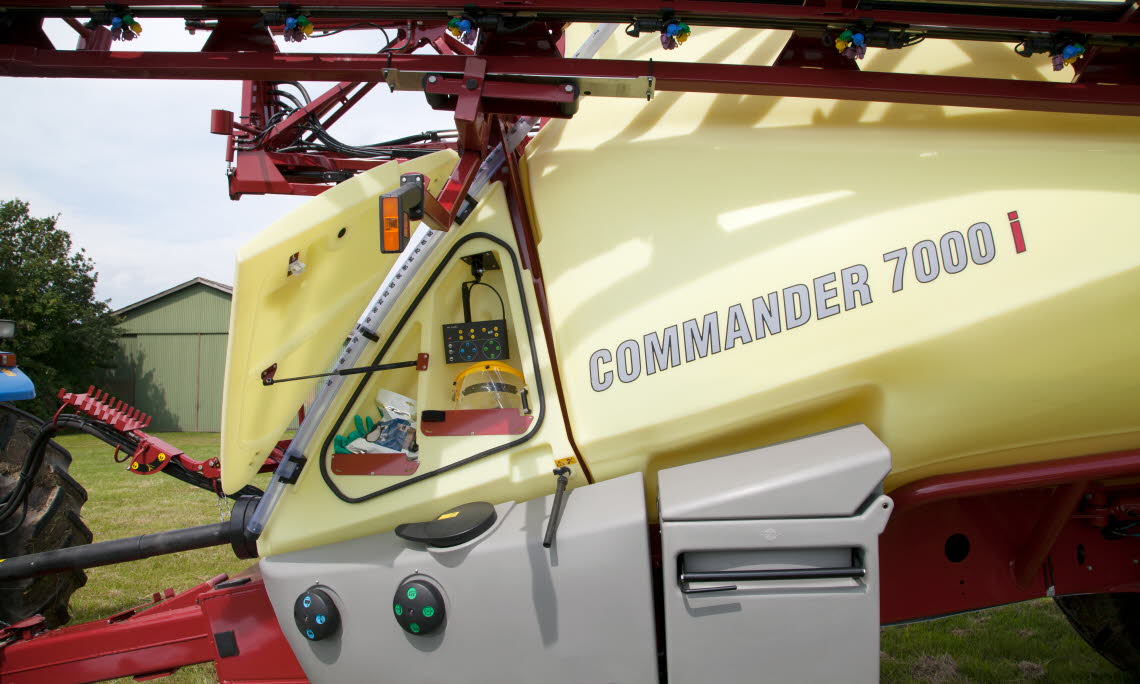

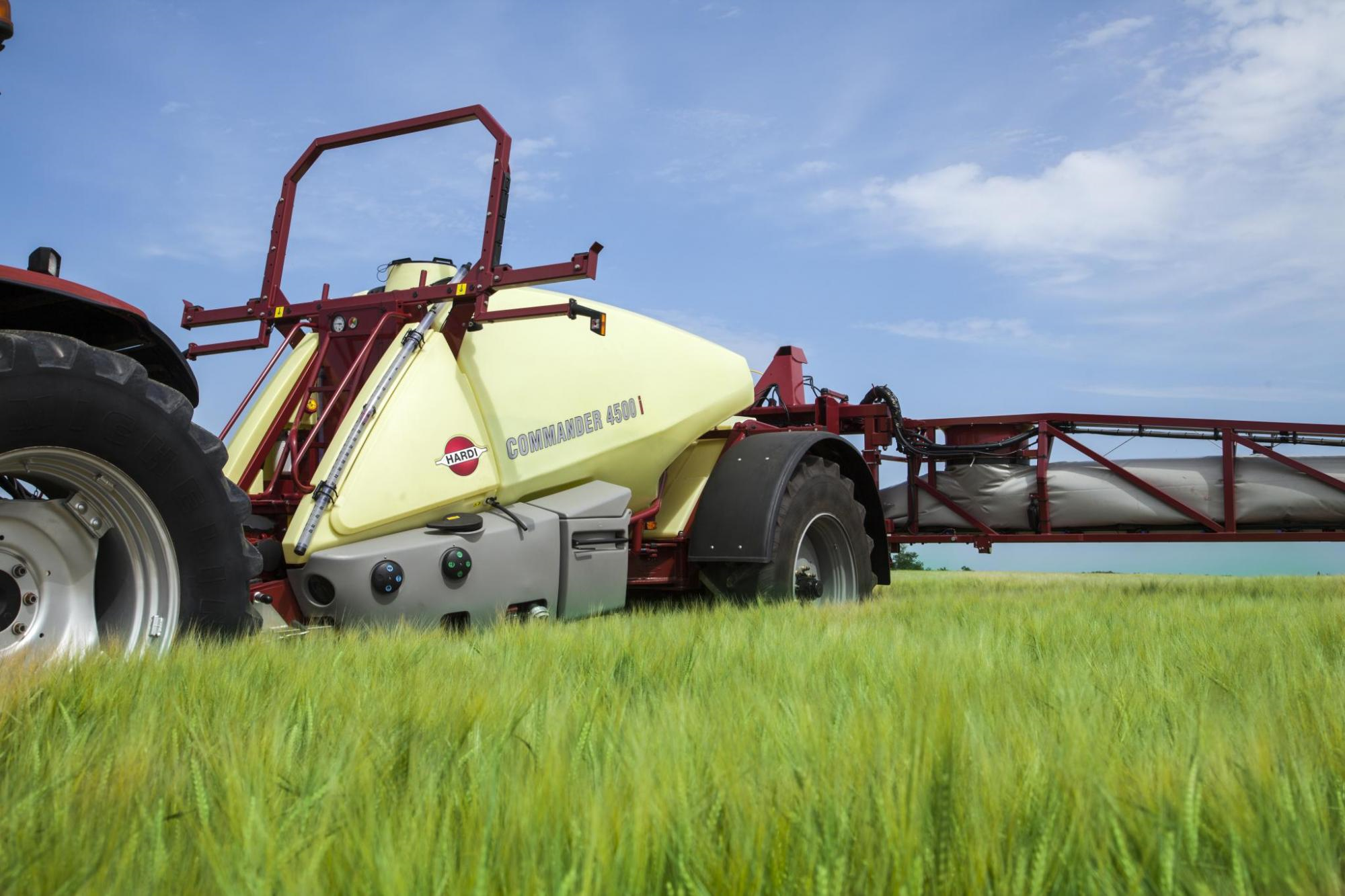

COMMANDER – intelligent spraying

The COMMANDER is designed to meet the demands of the modern professional farmer world-wide. This generation of sprayers is designed to lead the way in capacity, reliability, safety, optimization, ease of operation and precision. The COMMANDER is a highend performer designed for continuous use by demanding operators. An example of the functional design is the logical layout of the left hand side of the sprayer, where all primary operations are located. Take a closer look at some of the features making the COMMANDER the best choice on the market for trailed sprayers.

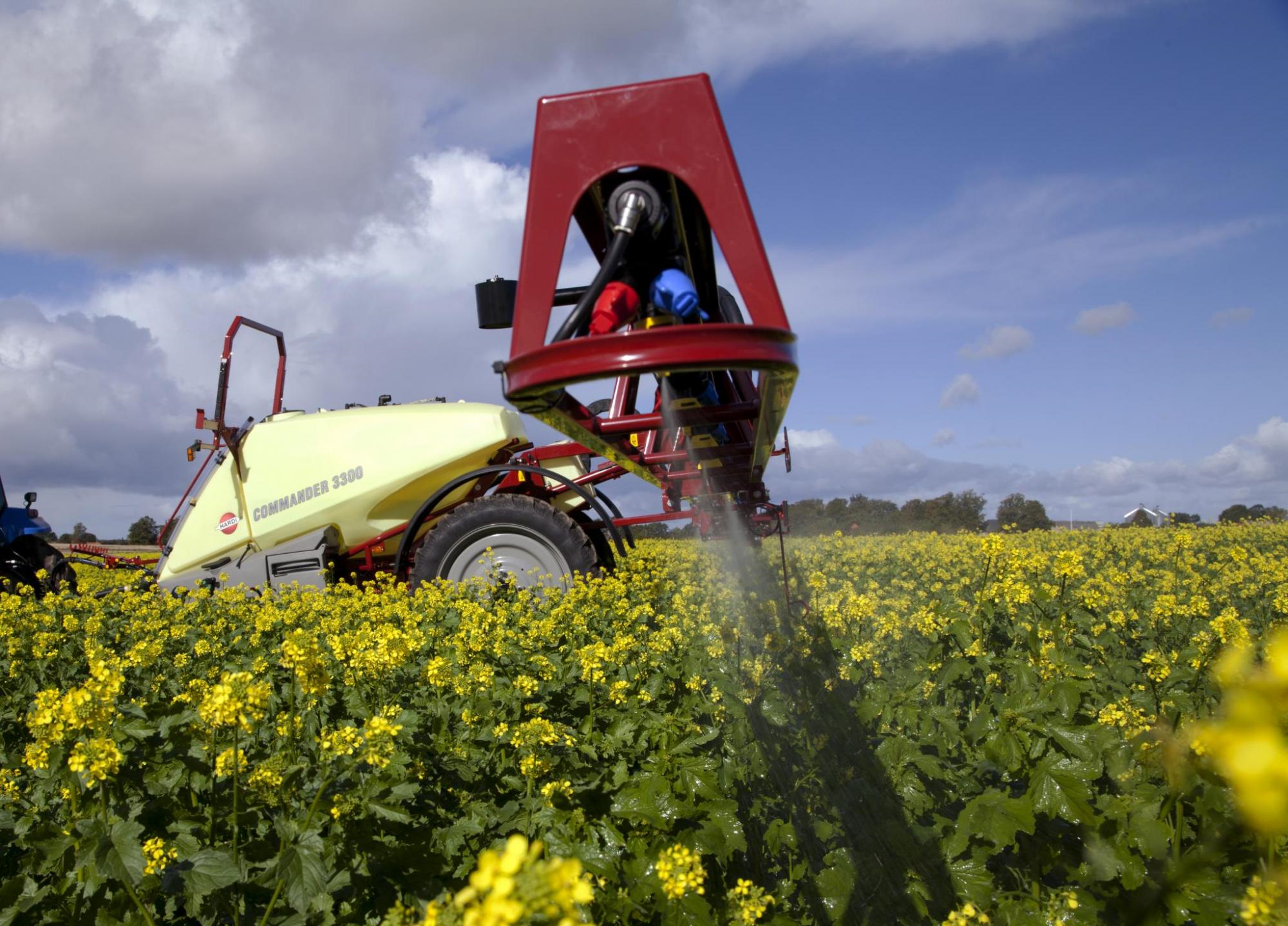

TWIN boom - World's best application system

Let’s take control. With the HARDI TWIN system, air will help you control the wind. You are in control of the speed and angle giving you the possibility of covering the whole plant, from top to bottom. Spray drift from conventional sprayer can be so strong that the operator has to stop before having the spray job done. With efficient drift control it is much easier for the operator to be able to spray the entire field. Under most conditions the farmers get at least twice as many hours for a safe and efficient spray job with the TWIN sprayer compared to conventional spraying.

The TWIN FORCE is available in sizes from 18 to 36 m.

DELTA FORCE boom - compact in transport - wide in field

DELTA FORCE is designed to be a large boom. The selection of features and the layout of the boom structure are targeted to perform at high driving speed and high performance at boom widths of 24-39 m. The result is a boom with many simple and strong solutions which together give a high-performing and reliable boom with a simple setup, low maintenance and a great design. A very advanced, but yet simple centre part controls the movements of the DELTA FORCE boom. The five pendulum settings allow to adjust the boom performance, either to a pendulum, which follows the sprayer movements, or to follow the level of the terrain.

HARDI DELTA FORCE is available in:
3-fold: 39/27/15 m, 36/27/15 m, 36/24/13 m, 33/25/15 m, 32/25/15 m.
2-fold: 30/15 m, 28/14 m, 27/14 m.

SafeTrack

The HARDI SafeTrack is available on the COMMANDER (optional). This revolutionary design merges the benefits from other traditional systems into one high performance system. With the HARDI SafeTrack you do not have to choose between either tight turning radius or stability. This ensures a minimum of crop damage combined with safe and user-friendly operation. A computer constantly monitors forward speed and turning radius to make sure that the correction made by the tracking system is as safe as possible.SafeTrack ensures that the boom is always 100% perpendicular to the tramlines. This ensures perfect application when turning at the end of the fields.

DynamicFluid4

The DynamicFluid4 system will calculate the consequences of the increased RPM and make the regulation instantly. The DynamicFluid4 property of pro-acting is based on 4 sensors in the fl uid system measuring RPM, position of regulation valves, flow and pressure. Combined with a specific new software and a new, unique ceramic regulation valve, DynamicFluid4 is offering precision in the application rate giving the best performance available on the market.

The sensors of DynamicFluid4 each have their individual task, but they will also work as backup for each other, and the regulation will continue. Regulation can be done manually.

AutoSelect – Change nozzles "on the go"

WIth AutoSelect you have the possibility to change between 4 functions:

  • Spray with nozzle A
  • Spray with nozzle B
  • Spray with nozzle A and B
  • Auto mode – here AutoSelect can work with pre-defined pressure settings or working speeds.



Excellent at speed changes

If you need to run with big changes in speed, AutoSelect can automatically, and instantly change between two sizes of nozzles, so one nozzles work can be taken over by a larger nozzle, at higher speeds. This will result in a higher droplet quality and a better application.



Change of dose during the spray job

If you need to change dose in the field, this can be done by changing to a more suited nozzle on the go - without compromising the spray quality. You have the possibility to use 9 to 13 sections and maximum 8 nozzles per section. AutoSelect works with air pressure, if you have a pneumatic brake system on your tractor your air source is already provided. If not, an air compressor is available as an option.



DELTA FORCE – 25 cm nozzle space

  • On-Center solution - the extra injectors are positioned between the 50 cm standard nozzle holders
  • Available for: NAVIGATOR 4000 / 5000 / 6000
  • Available for: COMMANDER: 4500 / 5000
  • DELTA FORCE: 27-36 m
  • 9 section EFC two-folded booms 27 / 28 / 30 m
  • 13 sections EFC three-folded booms 32 / 33 / 36 m
  • Stainless steel nozzle tubes as standard

The main argument for a distance of 25 cm is to reduce the height of the boom to 30 cm and to reduce the potential for spray drift. The low boom height requires a good boom management system. The best system on the market is the DELTA FORCE boom series along with HARDI AutoTerrain. The other advantage is a smaller nozzle VMD (volume median diameter) which increases the coverage.

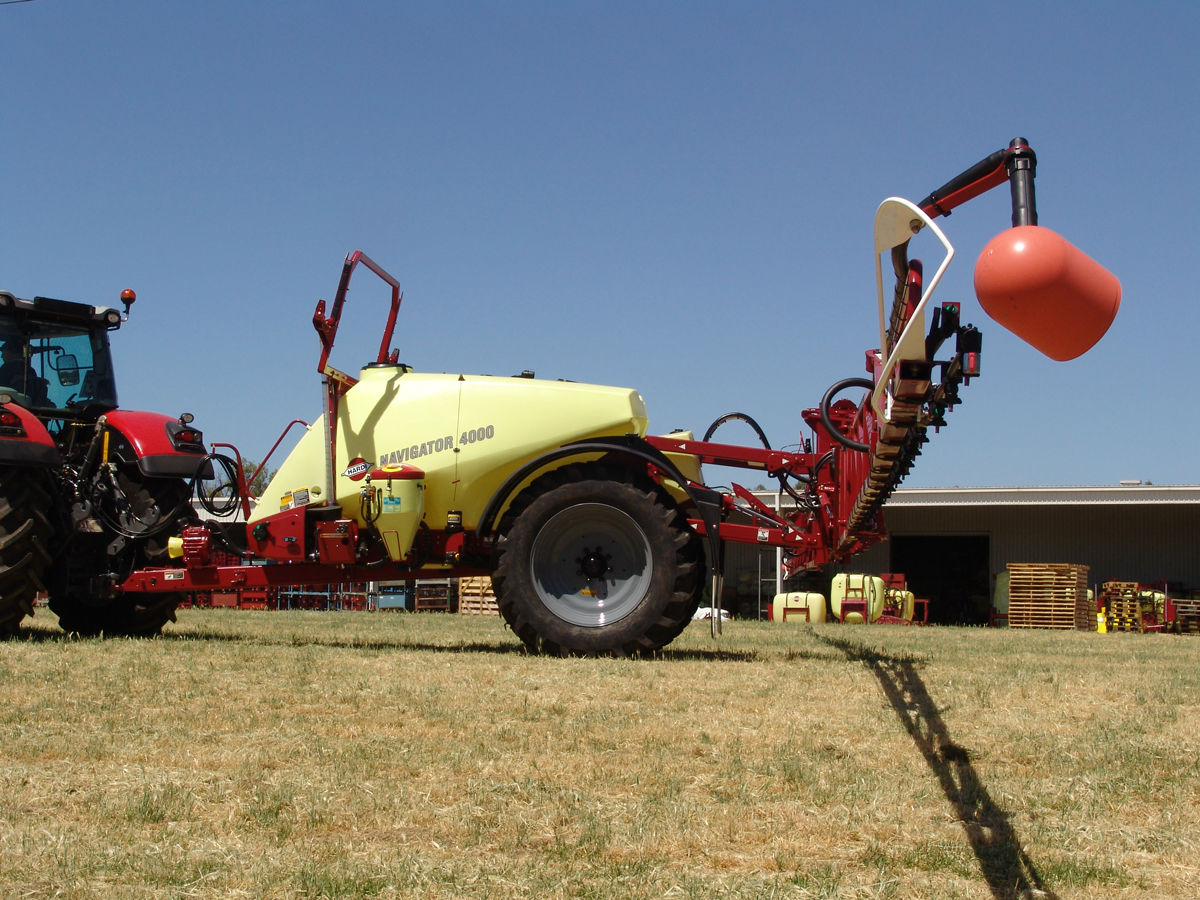

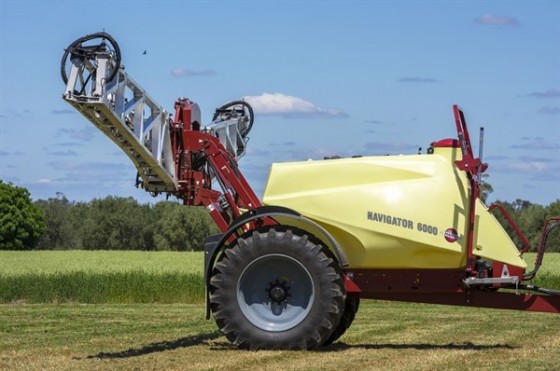

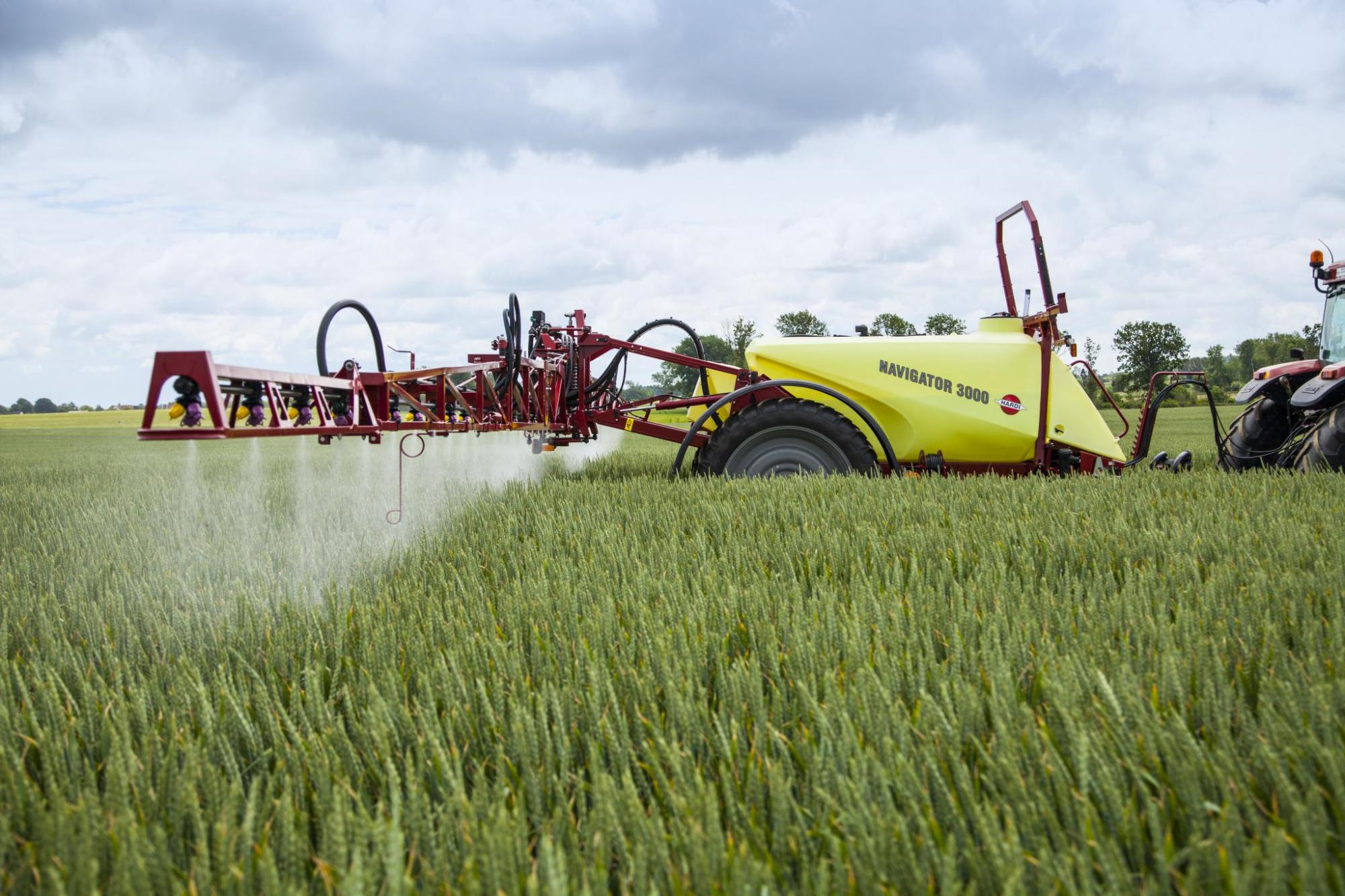

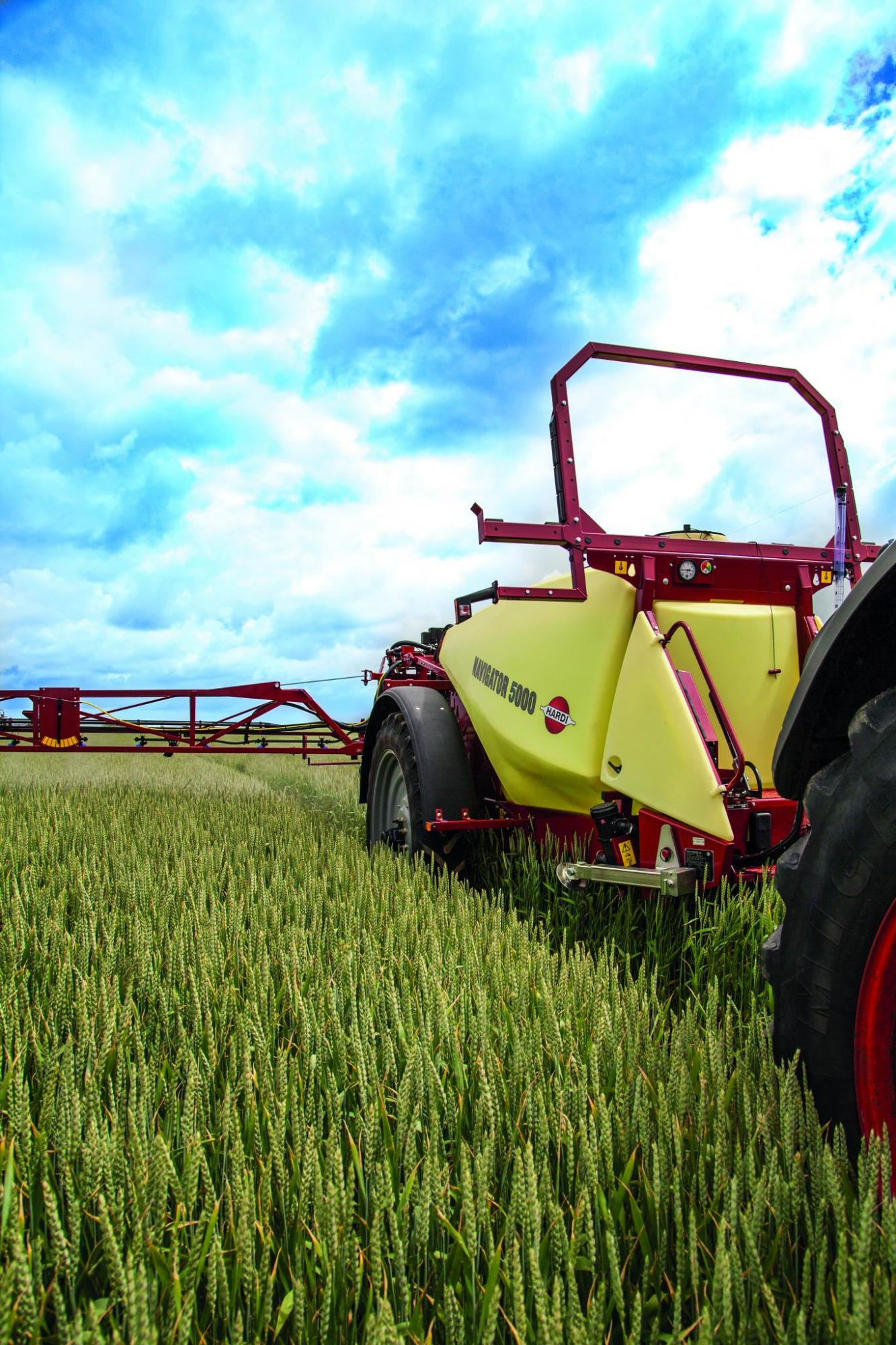

NAVIGATOR - the obvious choice

NAVIGATOR is synonymous with high quality and design which supports functionality. Properties which secure the value for money and ease of use. In the HARDI trailer family, NAVIGATOR offers features from mid-size to full specifi cation solutions.

The large range of high quality features makes the NAVIGATOR the obvious choice. Demands for simple and reliable solutions, serviceability and high capacity are universal world-wide. The product represents HARDI’s experience as sprayer specialist. The proven success for NAVIGATOR sprayers since the introduction has shown the value of this position.

IntelliTrack

IntelliTrack is a high-end steering drawbar concept combining the advantages of an excellently designed chassis with the use of advanced electronics. The tracking concept is easy to connect and operate, ensuring safe tracking even in difficult field conditions. IntelliTrack has an integrated safety feature which prevents the cylinders from steering the drawbar when the driving speed is too high for the given track width.

DynamicFluid4

The DynamicFluid4 system will calculate the consequences of the increased RPM and make the regulation instantly. The DynamicFluid4 property of pro-acting is based on 4 sensors in the fl uid system measuring RPM, position of regulation valves, flow and pressure. Combined with a specific new software and a new, unique ceramic regulation valve, DynamicFluid4 is offering precision in the application rate giving the best performance available on the market.

The sensors of DynamicFluid4 each have their individual task, but they will also work as backup for each other, and the regulation will continue. Regulation can be done manually.

Boom management system

The HARDI AutoSlant, AutoHeight and AutoTerrain systems will automatically control the boom This makes the job much easier for the driver, and the result will be a better spray application.

The system is known for the following features:

  • Robust and precise ultrasonic sensors
  • Option to choose between soil, crop or hybrid mode
  • Provortional valve for smooth movements (AutoHeight, AutoTerrain)
  • Slant, tilt and height correction (AutoHeight, AutoTerrain)
  • Slant and height correction (AutoSlant)

AutoTerrain works and reacts on both boom movements and twisting forces on the boom. This allows the system to be proactive and react on the cause more than on the symptom.

DELTA FORCE boom - Compact in transport - wide in field

DELTA FORCE is designed to be a large boom. The selection of features and the layout of the boom structure are targeted to perform at high driving speed and high performance at boom widths of 24-39 m. The result is a boom with many simple and strong solutions which together give a high-performing and reliable boom with a simple setup, low maintenance and a great design.

A very advanced, but yet simple centre part controls the movements of the DELTA FORCE boom. The five pendulum settings allow to adjust the boom performance, either to a pendulum, which follows the sprayer movements, or to follow the level of the terrain.

HARDI DELTA FORCE is available in:
3-fold: 39/27/15 m, 36/27/15 m, 36/24/13 m, 33/25/15 m, 32/25/15 m.
2-fold: 30/15 m, 28/14 m, 27/14 m.

AutoSelect – Change nozzles "on the go"

WIth AutoSelect you have the possibility to change between 4 functions:

  • Spray with nozzle A
  • Spray with nozzle B
  • Spray with nozzle A and B
  • Auto mode – here AutoSelect can work with pre-defined pressure settings or working speeds.

Excellent at speed changes

If you need to run with big changes in speed, AutoSelect can automatically, and instantly change between two sizes of nozzles, so one nozzles work can be taken over by a larger nozzle, at higher speeds. This will result in a higher droplet quality and a better application.

Change of dose during the spray job

If you need to change dose in the field, this can be done by changing to a more suited nozzle on the go - without compromising the spray quality. You have the possibility to use 9 to 13 sections and maximum 8 nozzles per section. AutoSelect works with air pressure, if you have a pneumatic brake system on your tractor your air source is already provided. If not, an air compressor is available as an option.

DELTA FORCE – 25 cm nozzle space

  • On-Center solution - the extra injectors are positioned between the 50 cm standard nozzle holders
  • Available for: NAVIGATOR 4000 / 5000 / 6000
  • Available for: COMMANDER: 4500 / 5000
  • DELTA FORCE: 27-36 m
  • 9 section EFC two-folded booms 27 / 28 / 30 m
  • 13 sections EFC three-folded booms 32 / 33 / 36 m
  • Stainless steel nozzle tubes as standard



The main argument for a distance of 25 cm is to reduce the height of the boom to 30 cm and to reduce the potential for spray drift. The low boom height requires a good boom management system. The best system on the market is the DELTA FORCE boom series along with HARDI AutoTerrain. The other advantage is a smaller nozzle VMD (volume median diameter) which increases the coverage.
